Cloned:Stage 4: Prototype

App Flow Sketch

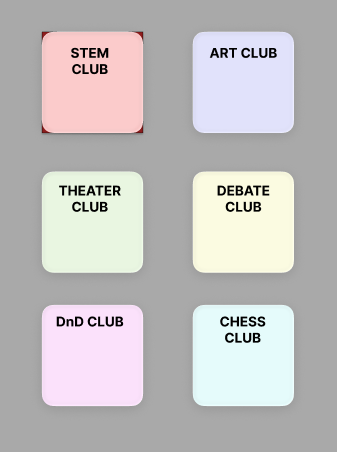

Screen 1The user will see a screen with 6 colorful buttons, each with an illustration relating to their content (i.e. a gear for STEM) They will choose which club they would like to participate in from this list.

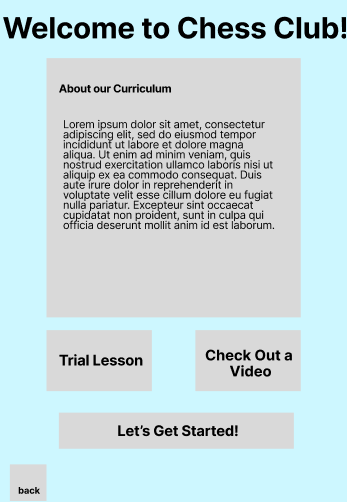

Screen 2 Once the user chooses which club they would like to participate in, they will be taken to a page with a brief description of the course, with an option for a screen reader. They will then get to see a video demo, trial lesson, and ultimately decide if they would like to enroll in the club.

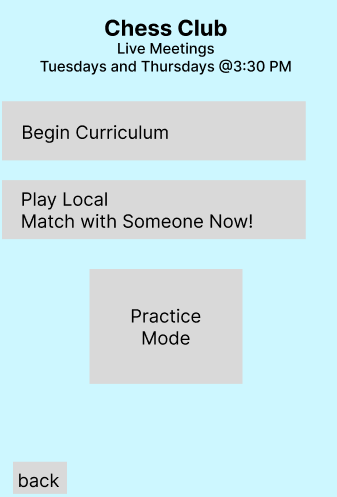

Screen 3 The user is taken to a screen that reads "Welcome to ________". They may choose from the options to begin the curriculum, pair with a local student from another school in the district also enrolled in the club, or do an "practice/independant study mode" which would look different for each course.

Function Mapping

pagenavigation Takes user from the homescreen to the cooresponding club screen that they chose
starttrial Launches the "free trial" portion of each club page
launchvideo Launches the video that is attached to each club page
launchclub When the users chooses to start the club, this will take them to the cooresponding club home page
launchcurriculumtakes user to the curriculum portion of the club for self study
matchlocal matches user to another student within the district using the app for collaboration
launchpractice launches practice/independant study mode
back returns the user to the previous page

Summary of Work

Web Project Link

https://app.codecraftworks.com/web/VrSCJlGo9seyonN6jv2Y

Summary

In the end I created four pages. A home page that housed three options for the clubs that could be chosen by the user, and three separate pages each cooresponding to that respective club selection. The "club selection pages" each contain information about the club, and a back arrow to navigate the user back to the main screen. A challenge I faced was to properly next each page in a way that the Javascript is able to read it. I struggled to fit each element within its own respective section so that they would hide and show up properly. Iteration was incredibly useful in this regard as I was able to clone my project to run trial and error with debugging ideas without major consequence to my overall project. I could try something, see if it worked, then adopt it to my main project without ever interupting the code that I know works.
